Plots

A dynamic prefab-based land management system. Define grids, load complex structures, and protect your world with intelligent masking.

See the Changelog

A simple yet powerful way to manage creative spaces, allowing you to focus on what truly matters: building.

Introduction
Installation
Dynamic Generation
Showcase
Configuration
Quick Start
Commands
The Masking System
Permissions
Localization
Public API
Data Architecture

Installation

Place the .jar file in your mods folder.
(Optional) Add your .prefab.json files to mods/Hytale_Plots/prefabs/.
Start the server to generate the default configuration.

Dynamic Generation

Plots is not just a static grid. It adapts to your specific design.

Adaptive Sizing: The grid automatically adjusts to any road or plot width (whether 4 or 150 blocks wide).
Islands Mode (Masking): Perfect for floating island worlds. The system understands your construction's shape and prevents expansions that deviate from the original design.
Vacuum Protection: Prevents players from joining separate islands or building in the "void," keeping your map's aesthetics intact.
Non-Square Support: Full support for independent width and depth (e.g., 32x64 plots).

Showcase

Here is an example of what you can achieve utilizing a custom prefab for the plot within our dynamic system. These floating islands were generated automatically using the grid system and protected with our granular masking logic.

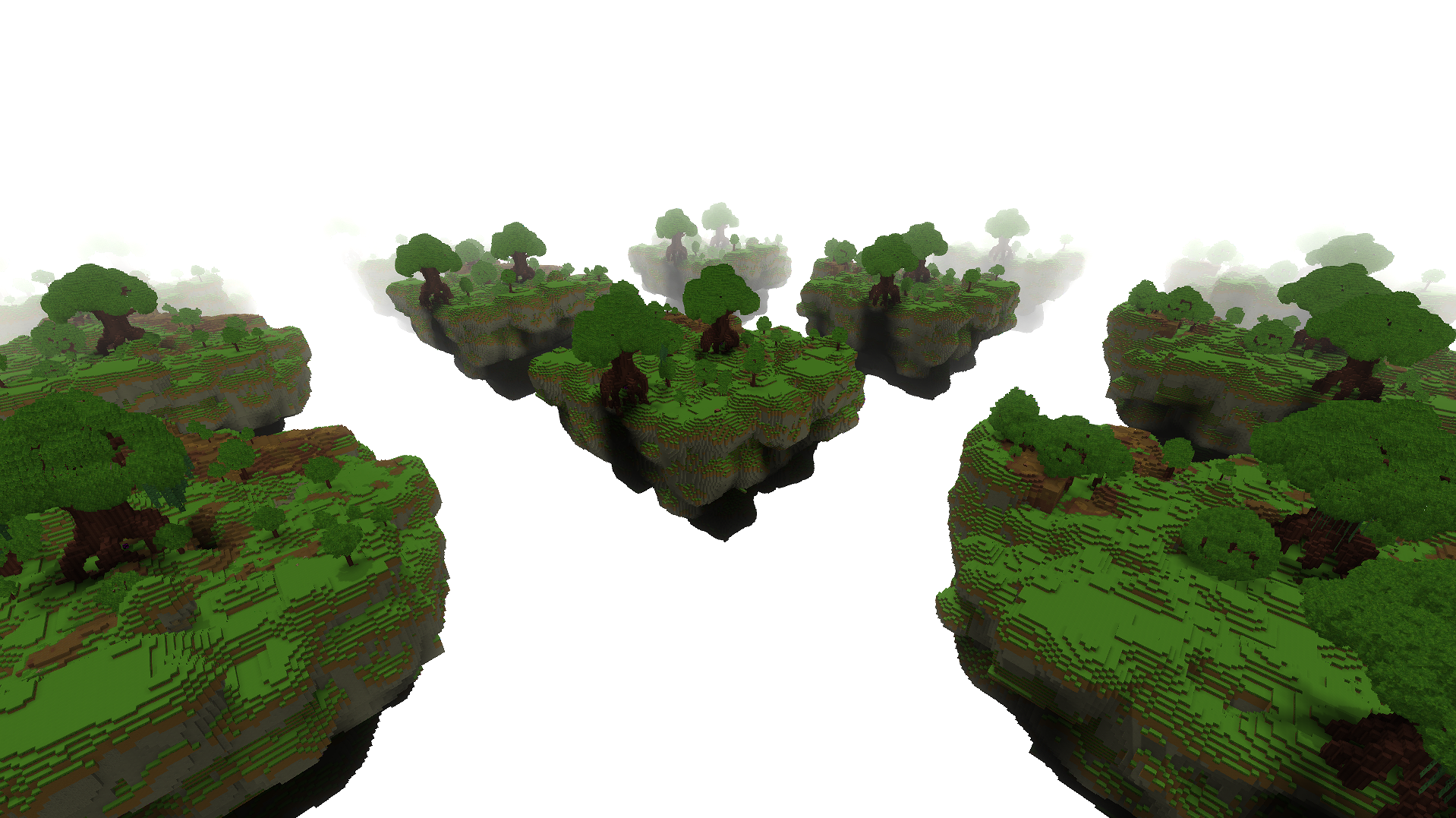

A custom island plot structure generated from a prefab and perfectly integrated into the grid.

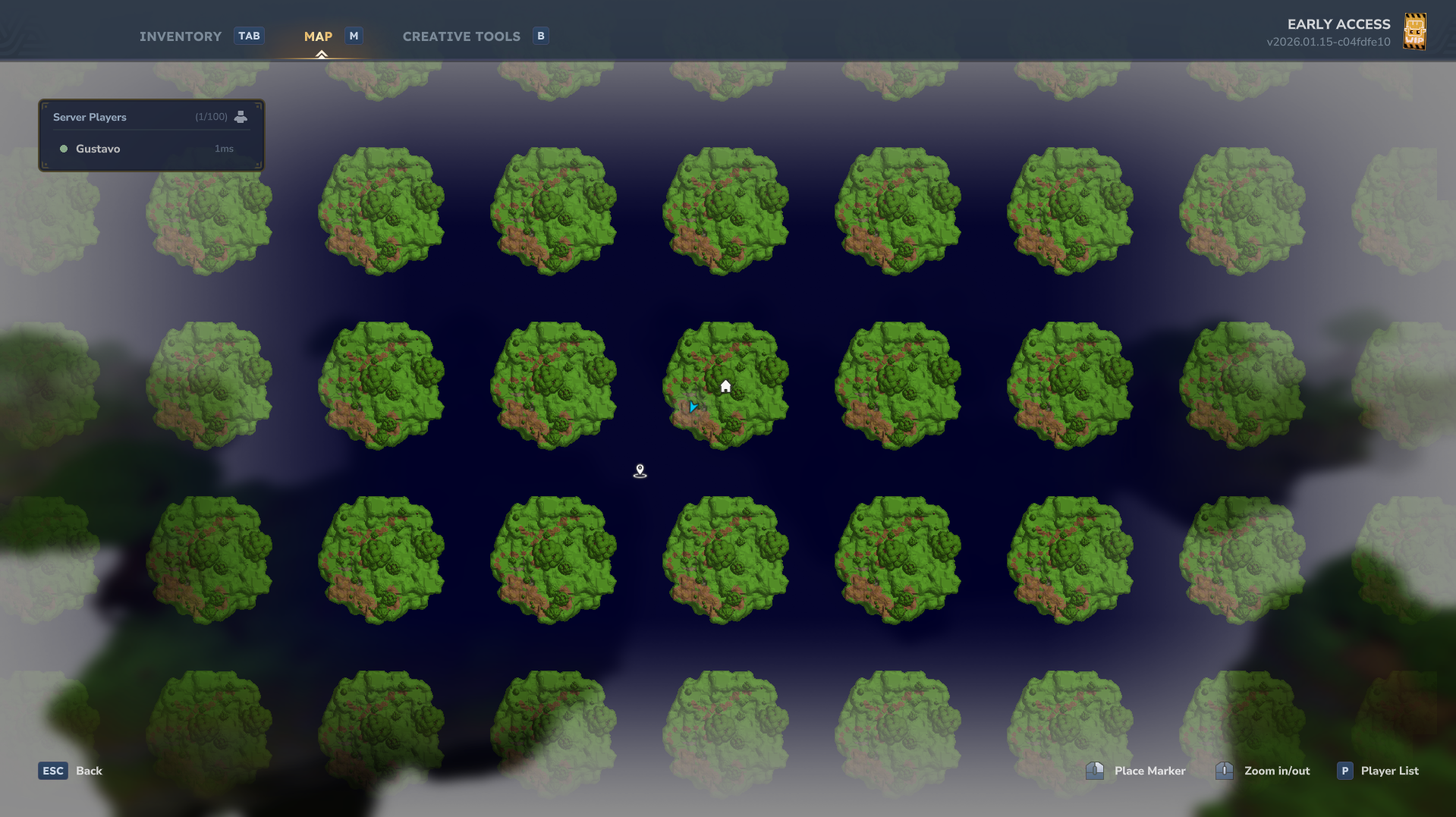

Island Plot Map
Top-down view showing how the plot prefab is distributed across the world.

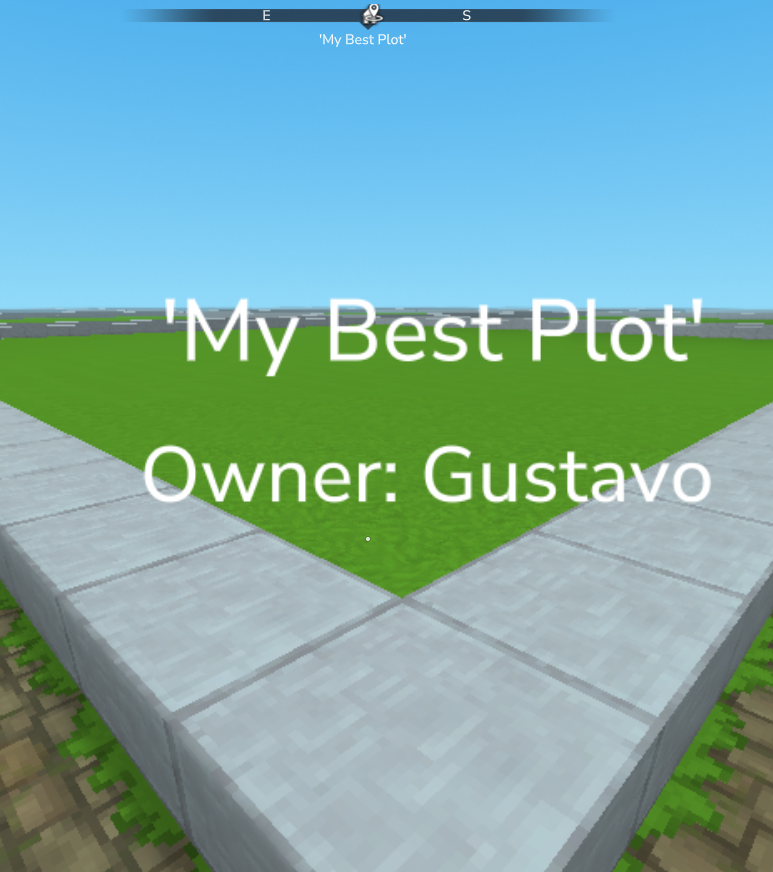

Plot holograms displaying plot names and owners.

Configuration

The config.json allows total control over your world. Below is a breakdown of the main settings:

General & World

Language: The locale used for messages (default: en_us).
PlotWorldName: The folder name for your dedicated plot world.
DefaultWorldTime: The starting time of the world (e.g., midday, night).

Plots (Grid Settings)

PlotSize: The internal building area of each plot.
RoadSize: The width of the paths between plots. Set to 0 for a gapless grid.
MaxPlotsDefault: How many plots a player can claim by default.

Blocks (Base Logic)

Bedrock/Surface/Filling: Define the base materials for your world generation.
Pro Tip: Set these to Empty or Air to create a technical "Void World" perfect for floating islands.

Prefabs (The Core)

Road/Plot/Intersection: Links specific prefab designs to the grid.
Important: Use the filename WITHOUT the .prefab.json extension (e.g., use my_island for my_island.prefab.json).

Quick Start

/plot claim - Take ownership of the plot you are standing on.
/plot home - Takes you back to your construction.
/plot trust <player> - Give a friend permission to build with you.
/plot rename <name> - Give your project a unique name.

Commands

Players

Command	Description
`/plot claim`	Claims the current plot
`/plot auto`	Finds and claims the nearest free plot
`/plot home`	Teleports to your primary plot
`/plot trust <player>`	Grants build permission to another player
`/plot untrust <player>`	Revokes build permission from a player
`/plot info`	Shows details about the plot you are in
`/plot list`	Lists all your owned plots
`/plot spawn`	Teleports to the plot world spawn

Administration

Command	Description
`/plot delete`	Removes a plot record (admins only)
`/plot reload`	Reloads configurations and prefabs
`/plot bypass`	Enables free-build mode for admins

The Masking System

We created an advanced protection logic for creative servers:

Vacuum Respect: If the space between islands isn't part of your original prefab, no one can build there. This maintains the "isolated island" look.
Vertical Freedom: If a column already contains ground from your prefab, the player is free to build up or down, allowing for basements or towers.
Lower Limit: Building below level 0 is automatically blocked to prevent visual clutter at the bottom of the map.

Permissions

Plots uses a granular permission system. You can assign these nodes to players or groups:

General Permissions

Permission	Description
`plots.*`	Full administrative access (unlimited plots, bypass protection)
`plots.claim`	Allows claiming plots with `/plot claim` or `/plot auto`
`plots.delete`	Allows deleting owned plots with `/plot delete`
`plots.delete.*`	Allows deleting any plot (Administrator)
`plots.spawn`	Allows visiting the dedicated plot world with `/plot spawn`
`plots.list`	Allows listing owned plots with `/plot list`
`plots.info`	Allows viewing plot information with `/plot info`
`plots.rename`	Allows renaming plots with `/plot rename`
`plots.trust`	Allows managing trusted members with `/plot trust`

Limit Permissions

Permission	Description
`plots.limit.X`	Sets the maximum number of plots a player can own (e.g., `plots.limit.5`)

Localization

We are committed to supporting as many languages as possible.

Help us translate: Visit our Crowdin Project to contribute.
Full message customization is available in the lang/ directory within the plugin folder.

Public API

Plots provides a comprehensive public API for external plugins to interact with the plot system programmatically.

Getting Started

import com.overworldlabs.plots.api.PlotsAPI;

// Get API instance
PlotsAPI api = PlotsAPI.getInstance();

Available APIs

PlotAPI

Query and manage plots:

// Get plot at location
Optional plot = api.plot().getPlotAt(world, x, z);

// Check ownership
boolean isOwner = api.plot().isOwner(plot, playerUuid);

// Get trusted players
List trusted = api.plot().getTrustedPlayers(plot);


#### PlotEventAPI
Listen to plot events:
```java
api.events().onClaim(event -> {
    Plot plot = event.getPlot();
    UUID owner = event.getOwner();
    // Handle claim event
});

api.events().onRename(event -> {
    String oldName = event.getOldName();
    String newName = event.getNewName();
    // Handle rename event
});

Events

Available events:

ClaimEvent - Fired when a plot is claimed
UnclaimEvent - Fired when a plot is unclaimed
TrustEvent - Fired when a player is trusted
UntrustEvent - Fired when a player is untrusted
RenameEvent - Fired when a plot is renamed

Future Documentation

A more comprehensive and organized documentation site is currently under development. Stay tuned for advanced tutorials, API references, and design tips!

Data Architecture

Everything is saved in simple, lightweight formats:

mods/Hytale_Plots/
├── prefabs/                <- Your JSON designs
├── plots.json          <- Registry of all ownerships
└── config.json             <- General settings

Hylograms Integration

Enhance your server with dynamic Hylograms that automatically display plot information at the corner of each claimed plot.

Dynamic Information: Automatically shows the Plot Name and Owner's Name.
Localized Text: Uses your selected language for all hologram labels.
Fully Configurable: Toggle holograms on/off or adjust their height offset in config.json.
Instant Updates: Holograms update the moment a plot is renamed or transferred.

To enable this feature, simply include the hylograms.jar library in your server's libs or mods folder.
